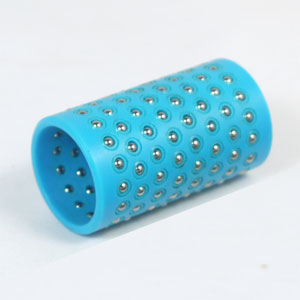

  • BCP POM Plastic Cage Ball Retainer
  • BCP POM Plastic Cage Ball Retainer
  • BCP POM Plastic Cage Ball Retainer
BCP POM Plastic Cage Ball RetainerBCP POM Plastic Cage Ball RetainerBCP POM Plastic Cage Ball Retainer

BCP POM Plastic Cage Ball Retainer

  • Balls: GCr15 Bearing Steel
  • Max Load Capacity: 30N/mm2
  • Max Sliding Speed: 6m/s
  • Friction Coef: 0.01~0.08
  • Product description: BCP POM Plastic Cage Ball Retainer for Punch Mold Parts
  • INQUIRY

BCP POM Plastic Cage Ball Retainer

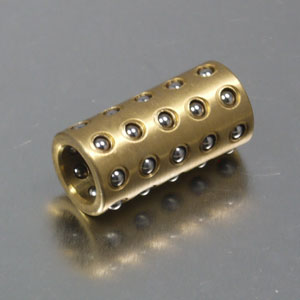

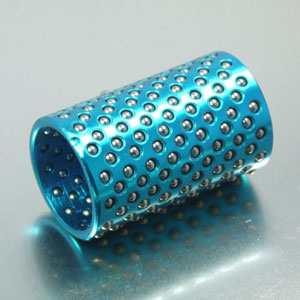

Ball Retainer Cage Bearing normally is used for mold die components. It is in brass or aluminum or plastic cage insert with precision steel balls. With rich experience we can produce miniature ball cages and long cage with small diameter. Generally length of retainer can be 5.0mm~100mm, inner diameter of retainer is 1.0mm~80mm. Material of steel ball is Chrome steel ball ( AISI52100, 100Cr6, Gcr15) in precision grade G10,size from 2mm to 6mm.





Technical Data


BCA

BCB

BCP

Cage Material

Aluminum alloy

Brass

POM plastic


ball cage retainer <a href=http://www.spboilles.com/product.html target='_blank'>bush</a>

ball retainer cage

ball cage bushing

Max Load Capacity

30N/mm2

Max Sliding Speed

6m/s

Coef Friction

0.01~0.08

Ball Tolerance

Within 0.002mm or as clients' requests

Shrink Fit

0.01mm~0.02mm






Catalogue


Click here to download catalogue of Ball Retainer Cage Bearing
