W-PE Metal backing PTFE Composite Thrust Washer

  • Static Load: 250N/mm2
  • Dynamic Load: 140N/mm2
  • Max. Speed: 5m/s
  • Temperature: -195~+280C
  • Product description: W-PE Metal backing PTFE Composite Thrust Washer,DU bushing thrust washer
  • INQUIRY

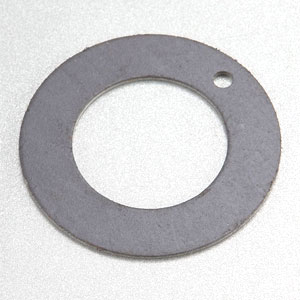

W-PE Metal backing PTFE Composite Thrust Washer

is wrapped by steel backing, Sintering bronze inter layer and PTFE(Teflon) composite anti-wear inner surface. Also it is name SF-1 bushing in China and DU, DP4, PAP P10 overseas. It is wildly used in hydraulic gear pumps, oil cylinder, oil Damping bushes and piston rings for automobiles and motorcycles and textile, food-stuff machines, etc.


PE DU SF-1 PTFE Composite washer

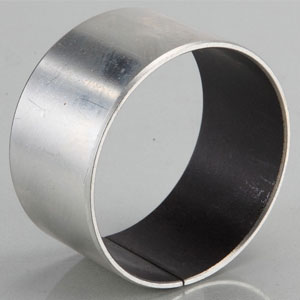

PTFE oilless dry bearing bushing is in carbon steel backing with sintered bronze intermediate layer, then PTFE (teflon) composite inner coated.PE model code means carbon steel in cylinder type bushing





Technical Data


DU bushing composite layers


1.PTFE composite 0.01~0.03mm as sliding layer*

2.Porous bronze 0.2~0.3mm

3.Metal backing 0.7~2.3mm**

4.Tin-plating 0.005mm or copper plating 0.008mm, or without further plating

*Normally it is without lead, customized can add it.

** Metal can be in carbon steel, bronze or stainless steel.

Performance

Data (*According to steel backing)

Load capacity P

(Dry friction)

Static load

250N/mm2

Dynamic load

140N/mm2

Max linear speed V

Dry friction

2.5m/s

Oil lubrication

5m/s

PV value limit

Dry friction

3.6N/mm2.m/s

Oil lubrication

50N/mm2.m/s

Friction coef u

Dry friction

0.08~0.20

Oil lubrication

0.02~0.07

Working temperature

-200oC~+280oC

Thermal conductivity

40W/mk

Linear expansion

12*10 -6/K

Products Standard: ISO3547 (Replaces DIN1494)
