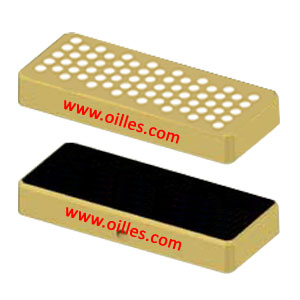

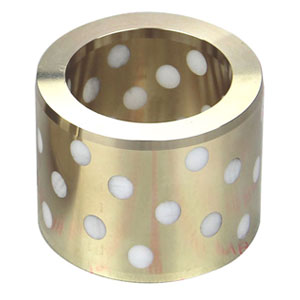

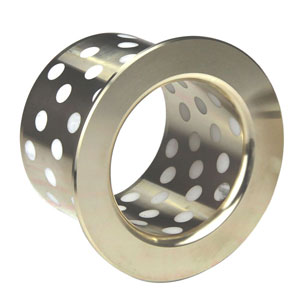

Solid Bronze Bearing is manufactured using high tensile manganese bronze plugged with solid lubricants. Basic bronze alloy material is CuAl10Fe5Ni5 with PTFE composite lubricants (SL4) plugged, It is specially designed by our company for water contacting applications like jet, propeller, ship, boatyard, offshore platform, hydraulic turbine etc.
These products are mainly used in applications of high load & moderate speed. It has the ability to withstand the temperature up to 400oC. We also have the capability to develop these bushes and plates as per any specifications of our clients.
Technical Data
|
|
Bronze material |
CuZn25Al6Fe3Mn3 +SL2 |
CuSn5Pb5Zn5 +SL2 |
CuAl10Fe5Ni5 +SL2 |
CuSn12 +SL2 |
|
Cu% |
Rest |
85 |
80 |
88 |
|
|
Sn% |
-- |
5 |
-- |
12 |
|
|
Pb% |
-- |
5 |
-- |
-- |
|
|
Zn% |
25 |
5 |
-- |
-- |
|
|
Al% |
6 |
-- |
10 |
-- |
|
|
Ni% |
-- |
-- |
5 |
-- |
|
|
Fe% |
3 |
-- |
5 |
-- |
|
|
Mn% |
3 |
-- |
-- |
-- |
|
|
Density |
8.2 g/cm3 |
8.8 g/cm3 |
8.5 g/cm3 |
8.8 g/cm3 |
|
|
Hardness |
>HB210 |
>HB70 |
>HB150 |
>HB80 |
|
|
Max. Load Pressure |
100 N/mm2 |
40 N/mm2 |
50 N/mm2 |
45 N/mm2 |
|
|
Max. Linear Speed |
0.5 m/s(dry) |
0.4 m/s(dry) |
0.25 m/s(dry) |
0.5 m/s(dry) |
|
|
Max. PV |
1.65 N/mm2 * m/s |
1.00 N/mm2 * m/s |
1.25 N/mm2 * m/s |
1.20 N/mm2 * m/s |
|
|
Tensile Strength |
>750 N/mm2 |
>200 N/mm2 |
>500 N/mm2 |
>360 N/mm2 |
|
|
Elongation |
>12 % |
>15 % |
>10 % |
>8 % |
|
|
|
Temperature Limit |
-40 ~ +300 oC |
-40 ~ +250 oC |
-40 ~ +400 oC |
-40 ~ +300 oC |
Products Standard: ISO 4379 (replaces DIN 1850)
Solid Lubricants
|
Code |
Material |
Features |
Application |
|
SL2 |
Graphite composite |
Low friction Chemical resistant Low cost Temperature limit 400oC |
Widely used for machinery |
|
SL4 |
PTFE+MoS2 composite |
Water contacting lubricating Longer life Temperature limit 300oC |
(Sea) Water lubricating |
Catalogue
Click here to download catalogue of SOB Machined Solid Bronze Bearing
