WF-WB702 Flange Wrapped Bronze Bushing

  • Material: CuSn6.5P/CuSn8P
  • Hardness: HB90~120
  • Load Capacity: 75N/mm2
  • Max. Speed: 2m/s
  • Product description: WF-WB702 Flange Wrapped Bronze Bushing,FB092F flanged bush,FB092 Bronze Bush,FB092 Bearing
  • INQUIRY

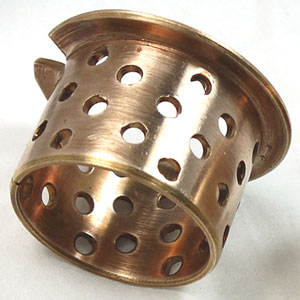

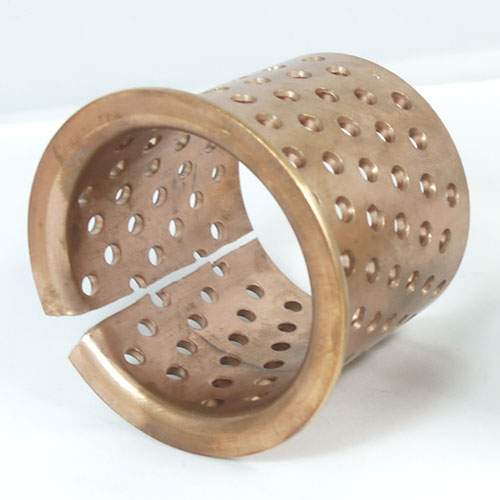

WF-WB702 Flange Wrapped bronze bushing

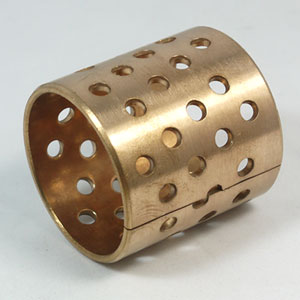

is made of bronze plate with oil pockets or holes. It is a kind of wrapped greased (also sometimes graphite) lubricating bushing bearing. Bronze material normally in CuSn6.5P or CuSn8P, the bronze is made as the particular formulation with high specific and gravity, and on its surface may be incorporated with spherical or diamond shaped indentations or/and oil grooves as required by customers. The products are widely used in construction machinery, agricultural machinery and so on.


flanged wrapped bronze bushing






Technical Data

S-WB700

S-WB702

WF-WB700

WF-WB702

S-WB800

S-WB802

WF-WB800

WF-WB802

Type

Cylinder

Flanged

Cylinder, Harden

Flanged, Harden

Hardness

HB90-HB120

HB90-HB120

HB125-HB150

HB125-HB150

Max. Load Pressure

75 N/mm2

75 N/mm2

100 N/mm2

100 N/mm2

Max. Linear Speed

2m/s

2m/s

2.5m/s

2.5m/s

Max. PV

2.5 N/mm2 * m/s

2.5 N/mm2 * m/s

2.8 N/mm2 * m/s

2.8 N/mm2 * m/s

Tensile Strength

450 N/mm2

450 N/mm2

460 N/mm2

460 N/mm2

Yield Strength

250 N/mm2

250 N/mm2

260 N/mm2

260 N/mm2

Products Standard: ISO3547 (Replaces DIN1494)
