WF-WB802 Wrapped Flanged Bronze Bushing

Material: CuSn6.5P/CuSn8P
Hardness: HB125~150
Load Capacity: 100N/mm2
Max. Speed: 2m/s

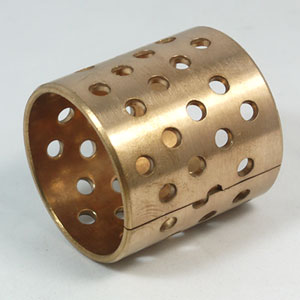

Product description: WB802 Wrapped Cylinder Bronze Bushing,FB092 Harden Bronze Bushing
INQUIRY

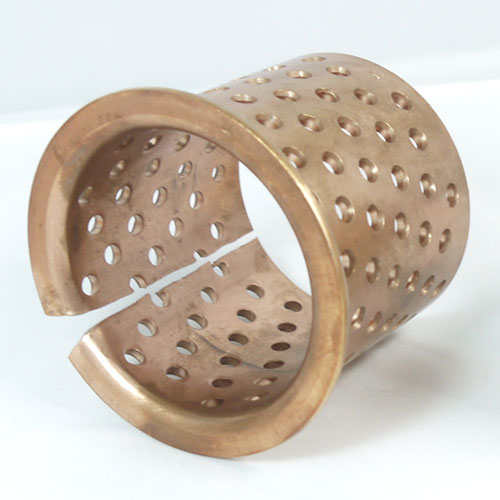

WF-WB802 Wrapped Flanged bronze bushing

is made of bronze plate with oil pockets or holes. It is a kind of wrapped greased (also sometimes graphite) lubricating bushing bearing. Bronze material normally in CuSn6.5P or CuSn8P, the bronze is made as the particular formulation with high specific and gravity, and on its surface may be incorporated with spherical or diamond shaped indentations or/and oil grooves as required by customers. The products are widely used in construction machinery, agricultural machinery and so on.

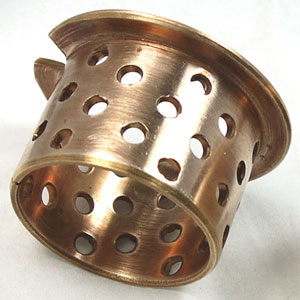

flange wrapped bronze bushing

Technical Data

	S-WB700 S-WB702	WF-WB700 WF-WB702	S-WB800 S-WB802	WF-WB800 WF-WB802
Type	Cylinder	Flanged	Cylinder, Harden	Flanged, Harden
Hardness	HB90-HB120	HB90-HB120	HB125-HB150	HB125-HB150
Max. Load Pressure	75 N/mm²	75 N/mm²	100 N/mm²	100 N/mm²
Max. Linear Speed	2m/s	2m/s	2.5m/s	2.5m/s
Max. PV	2.5 N/mm²_* m/s	2.5 N/mm²_* m/s	2.8 N/mm²_* m/s	2.8 N/mm²_* m/s
Tensile Strength	450 N/mm²	450 N/mm²	460 N/mm²	460 N/mm²
Yield Strength	250 N/mm²	250 N/mm²	260 N/mm²	260 N/mm²
